Riverbed SteelHead DX 8000 Series
Transfer And Protect More Data More Often With Less Risk And Cost
Sorry, this product is no longer available, please contact us for a replacement.
SteelHead DX WAN optimization appliances are purpose-built to address the unique needs of data center-to-data center workloads, delivering up to 60x improvements in throughput across WANs with high latency and/or packet loss and reducing bandwidth requirements by up to 99%. The solution enables organizations to transfer and replicate more data more often with greater visibility and less cost and risk, ensuring rapid data recovery times and improved business continuity.
SteelHead DX appliance offers the best price/performance value for optimizing data centerto-data center replication workloads, delivering increased optimized WAN capacity at lower cost. The Riverbed Optimization System (RiOS) is enhanced and tailor-made for SteelHead DX to provide increased data streamlining and transport streamlining performance for highspeed data transfer and replication workloads and with support for a select set of application streamlining optimizations for common DR applications.
SteelHead DX delivers advanced performance, visibility, and control of common disaster recovery (DR) applications, such as NetApp SnapMirror and EMC Symmetrix Remote Data Facility (SRDF)/A. RiOS volume-granular Network QoS ensures that the most important data replication processes complete on time every time. Fine-grain visibility and control of individual storage replication workloads leads to improved performance, predictability, and business planning.
Improve data transfer & replication for business consolidation & continuity
- Meet or exceed required SLAs, such as RPO/RTO for business continuity and disaster recovery, with increased predictability and reduced cost
- Experience up to 60x faster performance of data transfer and replication workloads
Reduce business risk
- Consistently meet performance SLAs for data transfer and replication workloads despite WAN latency, packet loss, limited bandwidth, and congestion
- Improve your visibility and control of mission-critical data transfer and replication processes
Protect and grow the business
- Reduce bandwidth requirements by up to 99%
- Eliminate projects delays and defer cost of WAN infrastructure upgrades to support strategic business continuity initiatives
Market-leading optimization solution
- Includes the industry-leading Riverbed Optimization System (RiOS)
- RiOS-customized for SteelHead DX to deliver enhanced performance for data center-to-data center workloads
- Award-winning 24x7x365 customer support

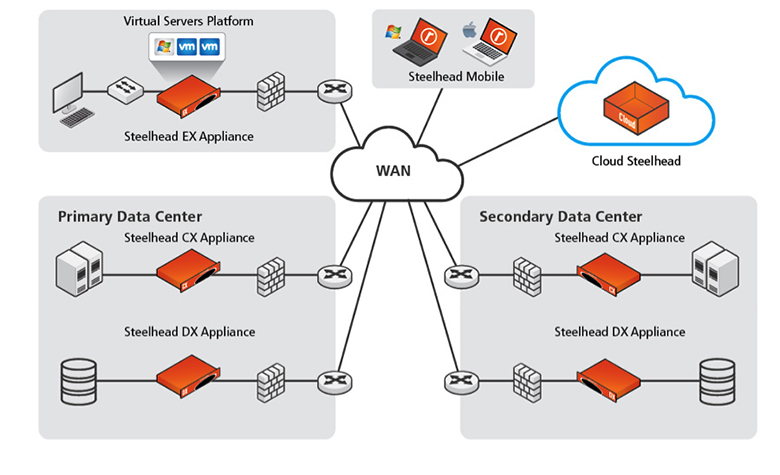

Purpose built for data center-to-data center deployments
- Best price/performance value for optimizing data center-to-data center replication workloads, delivering increased optimized WAN capacity at lower cost
- New Turbo Data Streamlining option designed for higher data replication performance between data centers. Available only for the DX appliance.
- Select set of application streamlining capabilities included for common DR applications, such as NetApp SnapMirror and EMC SRDF/A.
Enhanced Visibility and Control
- Enhanced Network QoS for volume-granular traffic shaping of replication processes
- Detailed throughput and bandwidth optimization reports for data replication workloads
- Storage-granular optimization policies for improved WAN performance and bandwidth savings
- Streamlined network integration and ease-of-management with DX-to- DX auto-discovery
- Enhanced plug-n-play integration with EMC SRDF/A
Centralize And Reduce Operational Overhead While Improving End-user Satisfaction
Our award winning SteelHead WAN optimization products have been proven to dramatically speed up applications in some of the most demanding customer environments. Companies of all sizes depend on Riverbed to help meet end-user expectations regardless of device, location, or application all while enhancing control and visibility over their entire networks.
- Increase performance on the WAN for TCP applications up to 100 times, and, for specific apps, 100 times or more
- Select the best path for application acceleration everywhere, using deep packet inspection (DPI)-based application awareness to distinguish between business- critical and recreational traffic
- Cut complexity and improve end- user experience by consolidating files, email and application servers, and storage across branches
- Defer costly network bandwidth upgrades by reducing bandwidth utilization up to 99%
- Reduce risk by enabling speedy, resilient, and secure replication and backup over the WAN (often reducing replication times from hours to minutes)
- Comply with regulations, such as SOX, HIPAA, and PCI by optimizing SSL traffic without compromising the end-to-end trust model
- Gain visibility and control by determining where problems exist, what is causing the problems, and how best to solve those problems
- Deliver local-quality performance to remote workers regardless of their location
SteelHead Series Features:
An Integrated Approach To Delivering Optimized Performance
Our SteelHead solutions help organizations run faster and more efficiently, ensuring consistent service levels while cutting IT infrastructure costs.
IT consolidation: LAN-like performance over the WAN
Boomerang Email: 6.4 MB email attachment over T1 WAN – Time to Complete (in seconds)
Virtualization: The “serverless” branch office
MS Excel, Word, PPT, and EXE File Transfer (25.9 MB Total) over T1 WAN - Time to Complete (in seconds)
Boomerang Email — 63 times faster with SteelHead WAN optimization.
File Transfers in Seconds Using SMB3 - 60 times faster performance for for subsequent SteelHead transfers with SteelHead WAN Optimization.
Consolidated IT infrastructure can simplify management, increase resource utilization, and reduce costs. But it can often result in diminished application performance and user productivity, which offsets any cost savings.
With SteelHead, users can access consolidated IT resources without compromising performance.
Moving servers and storage out of the branch and into data centers — where they can be more efficiently aggregated, managed, and secure — allows you to deliver more cost-effective access back to end users across the WAN and Internet.
Putting SteelHead appliances in place also can help optimize your VMware vSphere or Microsoft Hyper-V edge services, such as printing or security.
In these scenarios, with no more complex build-outs or remote servers to buy, install, and manage, you can set up your branches more quickly and efficiently while also lowering overhead and increasing user productivity.
Cloud computing: Moving into the cloud
Whether you are creating a private cloud infrastructure or outsourcing to Software-as-a Service providers such as Salesforce.com or Office 365, the limitations on network bandwidth and latency still remain. End users are far away from the data and applications they are trying to access, resulting in poor user response and inefficient application and data delivery. Deploying SteelHead appliances is a great way to defeat both these problems, while also saving money on costly bandwidth upgrades. In short, they can be the driving force to enable consolidation to private or public cloud architectures and a faster path from end users to applications.
SteelHead Cloud WAN optimization regardless of location – you decide where the data lives. We’ll make sure it’s optimized.
Mobility And Disaster Recovery
Our mobile WAN optimization solution can help you address the inherent problems of a distributed workforce, such as high-latency and inconsistent connectivity from changing locations. This enables you to increase employee productivity wherever employees work. SteelHead appliances will also help your organization optimize continuity and recovery across a range of backup, replication, and cloud storage mechanisms without disrupting your current infrastructure — ensuring the protection of existing investments.
Mobility and BYOD: Enabling a remote workforce
SharePoint HTTP File Save: 6.14 MB file via Verizon Wireless v620 Broadband Card (788Kbps with ~200ms RTT latency) – Time to Complete (in seconds)
SharePoint HTTP File Save — 63 times faster with SteelHead Mobile.
It can be a struggle to support mobile users who need access to corporate data and applications. In fact, mobile users often have to accept sub-optimal performance.
Riverbed SteelHead Mobile software extends our award-winning technology to any PC or laptop to deliver acceleration wherever users connect. With SteelHead Mobile, applications run faster, and remote workers have the applications they need anytime, anywhere. Now, bring your own device (BYOD), mobility initiatives, and desktop virtualization solutions can be optimized for use on the WAN.
Business continuity and disaster recovery: Enhanced data protection
NetApp SnapMirror Network Compression and Riverbed SteelHead WAN Optimization over 155 Mbps WAN – Time to Complete (in minutes)
NetApp SnapMirror Data Replication – LAN-like performance with SteelHead WAN Optimization.
With SteelHead, you can perform WAN-based backups or data replication without struggling to finish jobs in a tight backup window. It supports leading enterprise storage solutions, including EMC 2 , Hitachi Data Systems , as well as NetApp SnapMirror data replication and disaster recovery solutions.
With accelerated replication — up to 45 times — you can take more frequent snapshots and dramatically improve your recovery time in the event of a failure. We have advanced features for high-end, data-center-to-data-center disaster recovery, including enhancements for optimized throughput, tunable compression, and clustering for high availability and scalability. You also can use SteelHead appliances to dynamically adapt to “fill the pipe” for high-bandwidth environments, or to adopt higher compression, deduplication, QoS, traffic identification, and path selection to limit the impact on bandwidth for other applications on a shared WAN.
RiOS: The Power Behind the Family:
All SteelHead products are built on the Riverbed Optimization System (RiOS), which powers the product family through a combination of TCP optimization, application-level protocol optimizations, path selection, and patent-pending data reduction. These technologies, along with the RiOS management capabilities, provide a comprehensive solution for enterprise WAN optimization.
Hybrid networks: Greater application reliability and performance
With path selection technology in the latest version of RiOS (8.5), IT organizations can deploy and manage hybrid networks that combine the strengths of a highly reliable MPLS network with the benefits of the Internet — ubiquity, price, and speed. This delivers greater application reliability, performance, and cost savings in data centers, branch offices, and, private or public clouds while retaining IT control and minimizing complexity.
Path selection identifies the applications using deep packet inspection (DPI)-based application awareness to distinguish between business-critical and recreational traffic. You can use it to map applications to the appropriate paths available across the WAN and, in the case of performance issues, dynamically reroute applications to ensure no impact to users. It is simple to configure and can be used with other performance management tools that we provide without complex and tightly coupled router configurations.
Riverbed Path Selection Technology enables IT organizations to deploy and manage hybrid networks to deliver greater applications reliability, performance, and cost-savings in data centers, branch offices, and clouds while retaining control and minimizing complexity.
RiOS: Four streamlining technologies
- Data streamlining
- Reduces bandwidth utilization by up to 99%
- Industry leading scalability and patented de-duplication
- Works with TCP-based protocols and applications including: file sharing (Windows and NFS), email (Exchange and Lotus Notes), CAD, web-based HTTP and HTTPS applications, databases (Oracle), virtual desktops (Citrix and VMware) and collaboration software (SharePoint).
- Works with UDP-based file transfer applications, including Signiant, Aspera and Symantec’s Veritas Volume replicator
- Transport streamlining
- Reduces the number of TCP packets required to transfer data by 65 to 98%
- Enables the acceleration of SSL-encrypted traffic throughout the enterprise to eliminate the security and performance trade-off
- Enables greater utilization of high bandwidth links (long fat networks, such as OC3, OC12, and metrofiber) for HS-TCP and MX-TCP
- Supports satellite optimization for TCP links (based on SCPS extensions) over satellite connections that tend to be high latency, dynamic bandwidth, or lossy due to signal-to-noise ratio
- Application streamlining
- Offers the broadest support for application-specific modules to provide performance improvements on top of the data and transport streamlining optimization performed on all TCP traffic
- Reduces application protocol chattiness up to 98%
- Minimizes application overhead to provide massive throughput increases to such applications as file sharing (CIFS, SMB2/3, and NFS), collaboration software (Sharepoint), email (Exchange, including Office 365 and MAPI, and Lotus Notes), web (HTTP and HTTPS), database (MS-SQL and Oracle), and storage and disaster recovery (NetApp SnapMirror)
- Management streamlining
- Enables easy deployment through auto-discovery of peers and auto- interception of traffic — with no reconfiguration of clients, servers, or routers
- Simplifies ongoing management by providing simple, but powerful, web-based and command-line interfaces, in-depth reporting, and real-time NetFlow export
- Supports a vast array of network environments and topologies, including but not limited to MPLS, VoIP, video conferencing, QoS, VPN, satellite infrastructure, ATM, frame relay, microwave, and wireless
SteelHead for Any Environment and Organization:
Accelerate application performance and data transfer over the WAN, overcoming bandwidth and geographical limitations to improve productivity and enable global collaboration.
- Scalable for the deployment needs of any size
- Riverbed Granite and VSP capable for full branch office consolidation
- Deploy in minutes without changes to the existing IT infrastructure
- Support thousands of users with a device
Easily load balance and scale your network- wide throughput with the Riverbed Interceptor appliance. Cluster up to 25 SteelHead appliances to manage 40 GBps of throughput.
Central Management Console (CMC)
Easily configure, monitor, upgrade, and report on groups of SteelHead, Virtual SteelHead, and Interceptor appliances — all through one easy-to-use web interface. Available as a standalone appliance or CMC virtual edition for deployment flexibility.
Extend WAN optimization and performance to VMware vSphere and Microsoft Hyper-V Server 2012 based virtual environments.
- Same application performance and data transfer benefits in a virtual appliance
- Increase capacity on demand
Extend subscription-based WAN optimization to infrastructure as a service (IaaS) clouds. Authorized servers redirect connections to the appropriate cloud appliance to accelerate performance.
- Supported on Amazon Web Services and VMware ESX-based clouds
- Accelerate migration and access to the cloud
- Elastic sizing and easy cloning for the scale-as- you-go infrastructure
SteelHead Cloud Accelerator
Simplify WAN optimization integration into cloud environments in order to more efficiently manage the delivery of business-critical data and content from a public cloud infrastructure.
- Extend WAN optimization to cloud services/ Software as a Service (SaaS) to manage business- critical data and content delivery and ensure peak application performance
- Improve the performance of SaaS applications, such as Salesforce.com and Office 365 by up to 100x
- Benefit from the Akamai deployment footprint and Akamai SureRoute technology to reduce distance, latency and packet loss
Improve mobile and remote user productivity and experience with WAN optimization designed for Windows and Mac based laptops.
- Improve remote employee access to files and applications more than 19 times faster
- Easily scale network performance to hundreds of thousands of remote users
- Manage the policies that determine what optimizations take place per user or groups of users
SteelHead Mobile Controller
Manage SteelHead Mobile licenses and control the deployment, management, and reporting of SteelHead Mobile client software. Available in SMC standalone appliance or SMC virtual edition for deployment flexibility.
- Gain real-time visibility into application and WAN performance
- Access a single source for monitoring and license management
- Receive one-touch software upgrades and health alerts
SteelHead DX: Model Specifications
|Optimized WAN Capacity(a)||2 Gbps|
|Optimized TCP and UDP flows||10,000|
|QoS Bandwidth(b)||No limit|
|Hard Disk||1 TB|
|Hot Swappable Drives||2|
|Included Bypass Ports (10 GbE SR Fibre)||2|
|Included Bypass Ports (1 GbE Copper)||4|
|Expansion Slots (PCI-e)(d)||3|
|Max. # of Bypass Ports||18|
NOTE: All WAN Capacity / Bandwidth, TCP Connections and UDP flows, and QoS specifications listed are maximums and may not be achieved in all environments.
(a)No enforced optimized WAN bandwidth limit
(b)Recommended maximum outbound QoS shaping capacity
(c)Total of classes plus rules
(d) Optional Network Bypass cards: Dual and Quad LX and SX GigE Fiber GigE, Quad Copper GigE, 10GbE SR/LR
SteelHead DX: Power & Physical Specifications
|Dual Power Supplies|
|Power [Watts] (Typical)||450|
|Temperature(ii)||10 - 40 deg C / 50 - 104 deg F (Operating)
-40 - 65 deg C / -40 - 149 deg F (Storage)
|Relative Humidity(i)||20% - 80% non-condensing (Operating)
5% - 95% non-condensing (Storage)
|Operating Acoustic noise (Typical)||65 dBA|
|System Dimensions (LxWxH)(iii)||25.4 x 17.2 x 3.43 in
645.4 x 436 x 87.1 mm
|Packaging Dimensions||36.25 x 23.38 x 12.5 in
920.8 x 593.7 x 317.5 mm
|Max Weight (without packaging)||54 Lbs
|Rail Information||Mounting rail kit included.
Orderable spare part RMK-002A
(i) Operating altitude up to 10,000 feet except in China 6,562 feet (2,000m)
(ii) In China- for use in non-tropical locations
(iii) Length is without bezel
