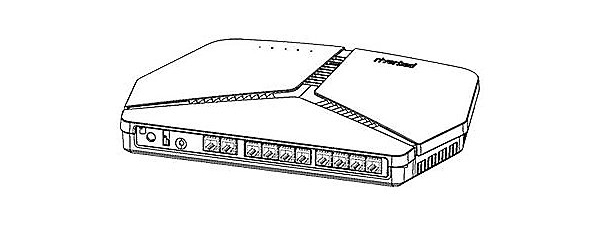

Riverbed SteelConnect SDI-130W
Revolutionary application-defined SD-WAN solution
Our Price: $995.00
The Business Challenge
Delivery of applications is becoming more complex for the enterprise. Businesses want to deliver more and richer applications like video, collaboration, and cloud services. Network architects are struggling to provide more bandwidth while ensuring application performance, and juggling security concerns such as URL filtering and securing connectivity with VPNs.
In the past, IT had to worry about only local branch and data center applications and, more recently, SaaS as well as IaaS clouds. Now enterprise edges—fragile and insecure—have become communication hubs, where IT must make rapid decisions around the right transport paths to balance performance, availability, costs, and security for applications.
And users—impressed by the agility and ease of use of consumer applications like Dropbox, email, and ample bandwidths at home—are now demanding that enterprise IT deliver applications, services, and changes at the same pace and quality.
IT organizations need to respond—easily, fast, and cost- effectively—better managing applications of all kinds, networks, clouds, and users while meeting the imperative for lower expenses and costs, user productivity, and business agility resulting in new opportunities and increased revenues.
Riverbed Application-Defined SD-WAN
Riverbed is the first to bring Application- Defined Networking for the Cloud Era. With Riverbed’s Application- Defined Networking, the network environment adapts to the application requirements. IT then can manage network segments that are part of SD- WAN’s unified networking fabric (WANS/LANS/Cloud), optimize and accelerate apps, and see into and troubleshoot application and network performance based on that application intelligence. As a result, Riverbed can deliver enterprise- level Visibility, Optimization, and Control over any network to any cloud or users no matter where they work.
Riverbed uniquely delivers these capabilities:
- Cloud Connectivity
- Cloud Managed LAN
- WAN Optimization Cloud Visibility
Riverbed ® SteelConnect ™ is the cornerstone of Riverbed’s strategy for next- generation, application- defined enterprise networking. SteelConnect is a complete SD- WAN system for securely connecting users and business to the applications they need, wherever they reside—on a remote LAN, in a data center, or in the cloud.
SteelConnect offers several differentiators—ubiquitous and unified connectivity across LAN, WAN, and the Cloud; business aligned orchestration for fast, agile, and secure application delivery; and unique cloud- centric workflow, easy menu- driven network design of sites, zones, uplinks, and rules, and centralized, business intent- based policy management—all within a simple graphical user interface—for ease of use and greater business agility.
- WAN optimization and SD- WAN capabilities
- Identification and classification of over 1300 applications with deep packet inspection
- Optimization and acceleration of applications—on premises and cloud—leveraging data (scalable data referencing or SDR), transport, and application streamlining
- Centralized network management capabilities based on a single intent- and user- based “plain- language” global business policy
- The ability to enforce application policy (path quality, path selection, network QoS, and security)
- Pre- defined Application Groups (for example, business critical) for traffic path rule and security policy creation, as well as scalability with fewer policy rules. Add custom applications and leverage a constantly updated catalog of public applications to identify applications for advanced classification
- Instant, single- click provisioning to the cloud with SteelHead ™ CX for Cloud to automate cloud networking and accelerate cloud performance
- Automated zero touch provisioning of devices
- Dynamic Native Routing – branch- and WAN- side— to eliminate routers and reduce complexity
- Path monitoring and quality-based, Hybrid WAN path selection
- Integrated and third-party security providers
- Scalability (up to a 1000 branches/sites)
- Cloud (AWS and Microsoft Azure) and self-hosting in a physical or virtual data center (for example, VMware)
- End-to-end visibility with unified views, plus reporting and troubleshooting of application and network performance
With SteelConnect, Riverbed is integrating its centralized, policy-based management and core SD-WAN capabilities with its industry-leading network and application optimization, enterprise-class scalability and end-to-end visibility into clouds, thus extending Riverbed’s Application-Defined Networking and End-to-End Unified Visibility for large-scale enterprises.
SD-WAN and WAN Optimization
Riverbed SteelConnect and SteelHead appliances integrate SD- WAN and WAN optimization, thus providing SD- WAN to the installed base of SteelHead CX xx70s appliances and WAN optimization to users of SteelConnect SD- WAN while maintaining end- to- end application centricity.
SteelConnect SD- WAN and WAN Optimization for data center deployments helps enterprises with highly complex infrastructures requiring high throughput and high availability for resilience.
The SteelConnect SDI- 5030 Data Center Gateway appliance enables seamless and large- scale deployment of SD- WAN with support for horizontal scale and high- availability clustering.
With the new SteelConnect SDI- 5030 Data Center Gateway appliance, Riverbed is leveraging its industry experience, integrating WAN optimization services into many of the most complex and secure data center networks in the world, to provide a seamless and scalable solution for unifying connectivity between remote sites, data centers and cloud environments.
While other solutions can require thousands of line of configuration updates and/or firmware upgrades to core data center routers, Riverbed SD- WAN leverages the Interceptor appliance to non- disruptively integrate SD- WAN and WAN Optimization services into hybrid networks—without complex router configuration and without data center router rip and replace or upgrade.
SteelConnect for data center deployments includes SteelConnect Manager, SteelConnect SDI- 5030 Gateway, Interceptor 9600, and SteelHead CXxx70s, plus integrated SteelCentral ™ Insights for visibility. The branch side includes a SteelHead appliance and a SteelConnect physical or virtual Gateway.
SteelConnect Data Center Improvements SDI-5030 Gateway
The new SteelConnect SDI- 5030 Gateway offers enterprise- class SD- WAN for large- scale deployments with Microsoft Azure and Amazon Web Services (AWS) integration and high availability (hardware and software). It offers support for complex networks (for example, split data centers and split campuses); n+k HA (with a minimum 2 SDI- 5030s plus one redundant SDI- 5030); higher throughput up to 5 Gbps; and redundant power supplies, all in a 1RU appliance. The new SteelConnect Gateway SDI- 1030 delivers up to 1 Gbps throughput at edge locations.
Scalability and SD-WAN with InterceptorInterceptor 9600 integrates with SteelConnect to combine Interceptor’s load balancing and SteelConnect’s traffic redirection functionality. Interceptor facilitates complex network integration without complex router configuration changes for SD- WAN and keeps the in- path devices fast, simple, and robust. Interceptor offers the same well- known graceful failover options as before (dual, quad, octal 1GbE or 10GbE with both fail- to- wire and fail- to- block options), thus enabling SteelConnect to perform at an enterprise- level. The addition of SD- WAN functionality is a free upgrade, and no additional license is required.
High Availability for Branch GatewaysSteelConnect offers high availability gateways for the branch, including the SDI- 130, SDI- 130W and SDI- 330. The gateways must be paired—with one reserved for redundancy. High availability is also ensured through data center high availability via clustering of the SteelConnect SDI- 5030 Gateway, load balancing of links, and path selection to failed links.
Single-Click Cloud ConnectivitySteelConnect’s single click cloud connectivity capabilities allow customers to automate cloud networking and accelerate cloud performance. SteelConnect offers elegant AWS Virtual Private Cloud (VPC) and Azure VNET management and interconnects physical networks to VPCs in seconds. It securely connects sites, branches, and users to AWS or Azure and delivers unified policy across regions and multiple clouds. Now you can add cloud optimization (app acceleration) with the click of a button. SteelConnect vGateway orchestrates SteelHead for Cloud in a virtual private cloud (VPC) and auto discovers the cloud SteelHead. The design supports high availability and fault tolerance with redundant instances deployed. It can be used for cloud- to- cloud optimization and enterprise data center/ branch- to- cloud optimization.
Integrated Visibility – SteelCentral Insights for SteelConnectSteelCentral ™ Insights for SteelConnect integrates with SteelConnect to provide visibility into what is occurring in SteelConnect software-defined WAN environments. SteelCentral Insights collects data from SteelConnect Manager securely using SteelFlow ™ (a Riverbed-specific form of NetFlow) and REST APIs. SteelCentral Insights for SteelConnect uses this data to provide visibility into usage and availability about your overall network, specific sites, servers, applications, and users. With this information, network managers can make informed policy and deployment decisions, monitor and troubleshoot performance issues for large-scale software-defined infrastructure using detailed reports, and then plan for changes. For example, the Site Summary shows overlay and underlay views, QoS class breakdown of the traffic, top users and top site interactions. Visibility is crucial for effective SD-WAN deployment and operation. The ability to validate policies are working as expected, troubleshoot problems quickly, and plan for changes can help ensure the success of your SD-WAN environment.
SteelConnect Dynamic Native RoutingSteelConnect can coexist with branch (customer edge) routers or replace the router with SteelConnect’s native routing, thus eliminating time spent manually coding CLI for the legacy router configuration. SteelConnect is adding WAN- side routing—eBGP (path vector) protocol, followed by OSPF—to deal with MPLS complexity and LAN side routing OSPF, followed by iBGP for reducing branch routing complexity. By using SteelConnect gateways as routers, customers benefit from SteelConnect’s ability to eliminate network complexity with its design- first approach and centralized, policy- based management.
Path Quality Monitoring and Quality- Based Path SelectionSteelConnect’s monitoring of the path quality provides visibility into the quality of each path in the overlay network including virtual paths, like QoS traffic classes, and reports on exceptions, as long as there are existing SLAs governing service expectations. There is minimal impact to customer traffic and gateway packet- rate performance. With Quality- Based Path Selection, SteelConnect can define the application’s path based on any of the following: global or site; sources such as zones, users, groups, and tags; destination; and guaranteed return path. Using VPN maintenance packets with enhanced headers, SteelConnect can make path decisions based on maximizing application service needs, including link status, packet loss, latency, and jitter. Path selection identifies applications using DPI- based application awareness to distinguish between business- critical and recreational traffic. Using a single global policy, you can map applications to the appropriate paths available across SD- WAN and hybrid networks and, in the case of performance issues, dynamically reroute applications to ensure no impact to users. Path Selection is simple to deploy based on a single, easy- to- use global policy—without doing complex and tightly coupled router configurations.
AgilityQuickly respond to the needs of your business with application- defined, business intent- based policies that are centrally managed and applied network- wide across all remote locations, including zero touch provisioning and rapid change management.
ReliabilityCreate a highly available WAN architecture that virtualizes and dynamically leverages multiple links at remote locations. Retain end- to- end visibility of network performance and end- user experience for troubleshooting and problem resolution.
Reduced CostsMaximize the use of redundant and lower cost connectivity options with zero- touch provisioning and centralized management to reduce the cost of deploying and maintaining hybrid WAN networks (MPLS and Internet) and hybrid architectures— on premises, private cloud (for example, VMware), and public cloud (for example, AWS and Azure).
PerformanceDeliver superior application performance to your business with industry- leading WAN optimization, end- to- end unified visibility with industry- leading APM and NPM, scalability, high availability, dynamic native routing, integrated and third- party security, and cloud and self- hosting management—all from Riverbed.
SecurityLeverage secure network services and integrated firewall capabilities to ensure the secure delivery of all applications across your hybrid enterprise. Securely identify and manage the performance of today’s modern and encrypted applications running over SSL, TLS, and HTTPS. Easily leverage unified security views and app- and user- based security policies.
SteelConnect Product Components:
- SteelConnect Manager : A cloud- based, multi- tenant management portal hosted as a service within popular clouds—Amazon Web Services, Azure, and others, as well as self- hosted, that is, a physical or virtual appliance on the customer’s premises or in the customer’s private cloud, such as VMware. It provides a simplified workflow for designing and deploying networks, and features Rest APIs for northbound traffic
- SteelConnect Gateway : A line of physical and virtual secure WAN gateways that provide basic network services to zones, as well as policy enforcement, extended reporting, and automated VPN with state- of- the- art security
- SteelConnect Switches : A line of remote switches that automate LAN deployment, automate network trunking, eliminate manual configuration errors, enhance security with reduced attack surfaces, drive traffic prioritization for network availability with QoS, and enable cloud stacking through port management across the entire network as if working with a single switch
- SteelConnect Access Points : A line of access points that enable enterprise- class, multi- site Wi- Fi for visitors, employees, and the Internet of Things (IoT) SteelConnect is built from the ground up for maximum performance and offers quick boot time, maximum throughput, and a fanless design. SteelConnect is available now, with feature enhancements released throughout the remainder of the year.
Riverbed® SteelConnect™ is a next-generation software-defined networking and SD-WAN solution designed to revolutionize and transform networking in a cloud-centric world. SteelConnect unifies network connectivity and enables orchestration of application delivery across hybrid WANs, remote LANs, and cloud networks. Solution components include:
- SteelConnect Manager
- SteelConnect Gateway
- SteelConnect Switches
- SteelConnect Access Points
SteelConnect Gateway Model Specifications – Physical Appliances
|Use Case||Small branch or retail||Medium branch||Large branch|
|Recommended # of users||5-50 users||25-250 users||200-2000 users|
|Performance||25 Mbps VPN 50 Mbps VPN 100 Mbps VPN||50 Mbps VPN 100 Mbps VPN 200 Mbps VPN||200 Mbps VPN 1 Gbps VPN|
|Interfaces||2x GbE WAN ports 8x GbE LAN ports 2x WLAN (2.4/5 GHz, 2x2 MIMO, only SDI-130W ) 1x USB 2.0 port||2x GbE WAN ports 8x GbE LAN ports 1x USB 2.0 port OLED status display||8x 1GbE RJ45 ports (LAN or WAN) 4x 10GbE SFP+ ports 10GbE Copper, SR or LR SFP+ orderable separately 1x USB 2.0 port 1x RJ45 Serial Port OLED status display|
|AC/DC Power||12V/2A DC power adapter (included)||100-240V 50/60Hz AC (built- in)||Dual Power Supplies (redundant & hot- swappable) 100-240V 50/60Hz AC (built-in)|
|Power (Watts)||10.8 / 11.4||13.2||80.5|
|BTU||36.8 / 38.9||45.0||274.7|
|Physical Design||Industrial design Snapdisc mount Desktop/wall mountable||Industrial design 1U rackmount||1U rackmount|
|Operating Acoustic noise (Typical)||N/A (fanless)||N/A (fanless)||Light Load: 42dB Full Load: 61dB|
|Relative Humidity||10-90% non-condensing for both storage & operating conditions||10-90% non-condensing for both storage & operating conditions NA (fanless)||10-90% non-condensing for both storage & operating conditions|
|System Dimensions||32.0 x 23.5 x 4.5cm (12.6 x 9.3 x 1.8in)||44.1 x 21.9 x 4.4cm (17.4 x 8.6 x 1.7in)||44.1 x 36.5 x 4.5 cm (17.36 x 14.37 x 1.8 in)|
|System Weight||0.8 kg (1.76lb)||3 kg (6.61lb)||6.3 kg (13.76 lb)|
|Packaged Dimensions||52.4 x 26.8 x 7cm (20.63 x 10.55 x 2.75 in)||59.9 x 53.3 x 14cm (23.58 x 20.98 x 5.51 in)||66.6 x 53.3 x 14.0 cm (26.22 x 20.98 x 5.51 in)|
|Packaged Weight||1.9 kg (4.2 lb)||6.6 kg (14.6 lb)||10.7 kg (23.59 lb)|
|Temperature Range||Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F)||Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F)||Operating: 0 to 45°C (32 to 113°F) Storage: -20 to 60°C (-4 to 140°F)|
|Use Case||Campus or Data Center|
|Recommended # of users||Not Applicable|
|Performance||5 Gbps VPN (a)|
|Cluster Configuration||Minimum of 3 nodes (2+1) N+K set up N= active nodes K= spare nodes|
|Interfaces||2x 10GbE (RJ45) ports 4x 1GbE (RJ45) ports via IOM Slot 3x USB 2.0 ports 1x VGA port 1x Serial Console port
1x PCIe Slot (optional NICs can be purchased separately)
|AC/DC Power||Dual Power Supplies (redundant & hot- swappable) 100-240V 50/60Hz AC (built-in)|
|Physical Design||1U Rackmount|
|Operating Acoustic noise (Typical)||70 db|
|Relative Humidity||50%-90% non-condensing with maximum wet bulb of 28 C.|
|System Dimensions||71.1 x 43.7 x 4.3cm (28.0 x 17.3 x 1.7in)|
|System Weight||15 kg (33 lb)|
|Packaged Dimensions||89.2 x 60.9 x 24.5cm (35.1 x 24.0 x 9.25 in)|
|Packaged Weight||19 kg (42 lb)|
|Temperature Range||Operating: 0 to 35°C (32 to 95°F) Storage: -40 to 70°C (-40 to 158°F)|
(a) 5 Gbps VPN when using two or more Interfaces
SteelConnect Gateway Model Specifications – Virtual
|Use Case||Virtual- and Cloud Environments|
|Recommended # of users||5-2500 users|
|Performance||VGW-LIC-BW010: 100Mbps VPN Hardware requirements: 1 CPU core @ 2.1 GHz (Intel E5-2600v4) 1GB DRAM & 200MB storage
VGW-LIC: 2.5 Gbps VPN Hardware requirements: 4 CPU cores @ 3.0 GHz or 6 CPU cores @ 2.1 GHz (Intel E5-2600v4) 8GB DRAM & 2GB storage
Actual performance will vary depending on hypervisor/virtualization & hardware platform design
|Interfaces||3x 1GbE or 1x 10GbE WAN ports 8x LAN ports|
|Physical Design||Compatible with VMware, KVM, Hyper-V, Citrix, Virtual Box, Amazon Web Services|
|Operating Acoustic noise (Typical)||N/A|
SteelConnect Switch Model Specifications
|Model||SDI-S12 POE+||SDI-S24 POE+||SDI-S48 POE+|
|Use Case||Small branch or retail||Medium branch||Medium and large branch|
|Performance||30 Gbps switching capacity Non-blocking fabric Ultra-low latency||70 Gbps switching capacity Non-blocking fabric Ultra-low latency||130 Gbit/s switching capacity Non-blocking fabric Ultra-low latency|
|Interfaces||12x GbE PoE+ ports 4x GbE SFP ports||24x GbE PoE+ ports 4x 10GbE SFP+ ports OLED status display||48x GbE PoE+ ports 4x 10GbE SFP+ ports 2x QSFP ports (on the rear) [Stacking of no more than 3 S48 switches is recommended.] OLED status display|
|AC/DC Power||150W PoE Budget 180W Built-in power supply 100-240V 50/60Hz AC||270W PoE Budget 300W Built-in power supply 100-240V 50/60Hz AC||550W PoE Budget 2x 600W Built-in power supply (redundant & hot- swappable) 100-240V 50/60Hz AC|
|Physical Design||Industrial design Desktop/wall mountable 1U rackmount kit||Industrial design 1U rackmount kit||Industrial design 1U rackmount kit|
|Operating Acoustic noise (Typical)||N/A (fanless)||15.3dB (10% fan duty)||50db (50% fan duty)|
|Relative Humidity||10-90% non-condensing for both storage & operating conditions||10-90% non-condensing for both storage & operating conditions||10-90% non-condensing for both storage & operating conditions|
|System Dimensions||30.6 x 21.9 x 4.4 cm (12.0 x 8.6 x 1.7in)||44.1 x 30.5 x 4.4 cm (17.4 x 12.0 x 1.7in)||44.1 x 45.0 x 4.4 cm (17.4 x 15.9 x 1.7in)|
|System Weight||2 kg (4.41lb)||4.95 kg (10.91lb)||5.95 kg (13.11lb)|
|Packaged Dimensions||59.9 x 53.3 x 14 cm (23.58 x 20.98 x 5.51 in)||59.9 x 53.3 x 14 cm (23.58 x 20.98 x 5.51 in)||66.6 x 53.3 x 14 cm (26.22 x 20.98 x 5.51 in)|
|Packaged Weight||6.5 kg (14.4 lb)||8.4 kg (18.6 lb)||13.1 kg (28.9 lb)|
|Temperature Range||Operating: 0 to 45°C (32 to 113°F) Storage: -20 to 60°C (-4 to 140°F)||Operating: 0 to 45°C (32° to 113°F) Storage: -20 to 60°C (-4° to 140°F)||Operating: 0 to 45°C (32° to 113°F) Storage: -20 to 60°C (-4° to 140°F)|
SteelConnect Access Point Model Specifications
|Radio Specification||1x 802.11g/n radio on 2.4 GHz 1x 802.11a/N/Ac radio on 5 GHz 1750 Mbps max rate 3x3 MIMO with 3 spatial streams Internal 3D sectorized antenna array 3x 4dBi on 2.4 GHz 3x 5dBi on 5.0 GHz||1x 802.11g/n radio on 2.4 GHz 1x 802.11a/N/Ac radio on 5 GHz 1750 Mbps max rate 3x3 MIMO with 3 spatial streams Omni-directional antennas (N-Type) 3x 5dBi on 2.4 GHz 3x 7dBi on 5 GHz|
|Interface||1x GbE port||2x GbE ports|
|AC/DC Power||802.3at Power-over-Ethernet||802.3at Power-over-Ethernet|
|12V/2A DC power adapter (optional)||24W PoE Injector (optional)|
|Power (Watts) with power adapter||15.0||NA|
|BTU with power adapter||51.2||NA|
|Power (Watts) PoE||19.0||36.0|
|Physical Design||Industrial design Snapdisc mount Desktop/wall/ceiling mountable||Industrial design Wall, pole mountable IP68-rated waterproof housing|
|Operating Acoustic noise (Typical)||N/A (fanless)||N/A (fanless)|
|Relative Humidity||10-90% non-condensing for both storage & operating conditions||10-90% non-condensing for both storage & operating conditions|
|System Dimensions||18.9 x 21.0 x 4.5cm (7.44 x 8.26 x 1.77in)||28.5 x 21.8 x 5.3cm (11.22 x 8.58 x 2.10in)|
|System Weight||0.9 kg (2.0 lb)||4 kg (8.8 lb)|
|Packaged Dimensions||26.0 x 26.0 x 6.5 cm (10.24 x 10.24 x 2.56 in)||39.0 x 26.0 13.0 cm (15.35 x 10.24 x 5.12 in)|
|Packaged Weight||1.04 kg (2.3 lb)||4.2 kg (9.2 lb)|
|Temperature Range||Operating: 0 to 40°C (32 to 104°F) Storage: -20 to 60°C (-4 to 140°F)||Operating: -20 to 70°C (-4 to 158°F) Storage: -30 to 80°C (-22 to 176°F)|
- Pricing and product availability subject to change without notice.
Our Price: $995.00
Models: SDI-130,SDI-130W. Price per month. Quantity must be 12 or greater.
Our Price: $97.00
Models: SDI-130,SDI-130W,SDI-330. Price per month. Quantity must be 12 or greater.
Our Price: $137.00
Models: SDI-130,SDI-130W,SDI-330. Price per month. Quantity must be 12 or greater.
Our Price: $163.00
